Panel serwisowy obejściowy ByPass 10-20kVa

Czas wysyłki: 24 godziny

Koszt wysyłki: od 0,00 zł

Numer katalogowy: 18916

Cena brutto: 2 718,96 zł

Cena netto: 2 210,54 zł

Cena katalogowa: 2 718,96 zł

Oszczędzasz: 0,00 zł

Produkt chwilowo niedostępny w sprzedaży

dodaj do schowka

Zapytaj o produkt Poleć znajomemu Specyfikacja PDF

Opis produktu
Recenzje produktu (0)

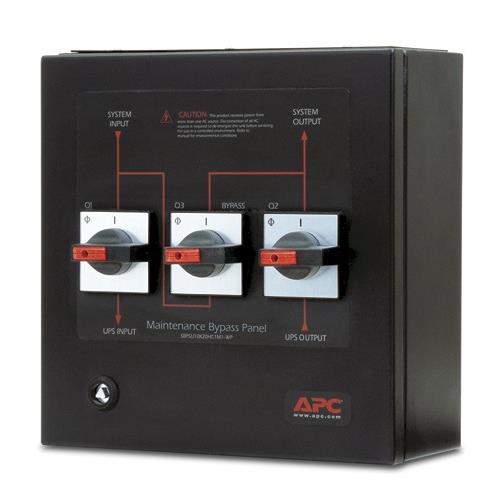

APC Smart-UPS VT Konserwacyjny panel obejściowy 10-20kVA SBPSU10K20HC1M1-WP

Output

Nominal Output Voltage
400V 3PH

Input

Nominal Input Voltage
400V 3PH
Input frequency
50 Hz +/- 3 Hz
Number of Power Cords
1

Physical

Maximum Height
315mm , 31.5CM
Maximum Width
305mm , 30.5CM
Maximum Depth
175mm , 17.5CM
Net Weight
7.01KG
Shipping weight
7.73KG
Shipping Height
442mm , 44.2CM
Shipping Width
381mm , 38.1CM
Shipping Depth
254mm , 25.4CM
Color
Grey
Units per Pallet
1.0

Environmental

Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-15000meters
Storage Temperature
0 - 40 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-15000meters

Conformance

Approvals
EN 50091-2, EN/IEC 62040-3, EN/IEC 62040-1-1
Standard warranty
1 year (parts only)

Manageability

Network manageable

Provides remote power management of the UPS over the network.
LED status indicators

Quickly understand unit and power status with visual indicators.
LCD display

Alpha-Numeric Display which displays system parameters and alarms.
InfraStruXure Manager Compatible

Enables centralized management via the APC InfraStruXure Manager.
Programmable frequency

Ensures compatibility with different input frequencies.
Audible alarms

Provides notification of changing utility power and UPS power conditions
SmartSlot

Customize UPS capabilities with management cards.

Total Cost of Ownership

Manual maintenance bypass

Reduces installation costs by eliminating the need for an external mechanical bypass.
Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.
Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.
Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Protection

Cold-start capable

Provides temporary battery power when the utility power is out.
Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Frequency and voltage regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Sustainability

EU CoC for UPS

Ensures that UPSs sold in the EU are highly efficient

Marketing Features

Dual mains input

Increases availability by allowing the UPS to be connected to two separate power sources.
Scalable runtime

Allows additional run time to be quickly added as needed.
Network manageable

Provides remote power management of the UPS over the network.
Manual maintenance bypass

Reduces installation costs by eliminating the need for an external mechanical bypass.
Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.
Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Availability

Scalable runtime

Allows additional run time to be quickly added as needed.
Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.
Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Battery modules connected in parallel

Delivers higher availability through redundant batteries.
Dual mains input

Increases availability by allowing the UPS to be connected to two separate power sources.

Serviceability

Battery replacement without tools

Enables fast battery replacement, lowering Mean Time to Repair (MTTR).
Modular design

Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
Shippable with modules installed

Enables pre-installation UPS staging and testing and faster installation.
Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.
